M12 Female Panel Mount, Angled , PCB Type, Without Fixed Holes, Shielded Shell

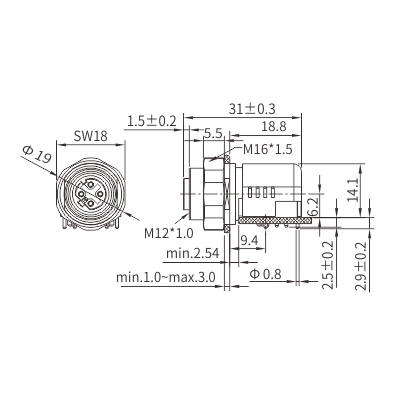

M12_2025 P372-1
Part No：MB12FBSDFF04RA-20
- Specification
- Application
- Certified
Connector series: M12
Gender: Female
Coding: D
Locking type: Fix screw
Mounting type: Right angled
Part No.: MB12FBSDFF04RA-20
General information
Standard: IEC 61076-2-101 Ambient temperature: -25℃ ~ +90℃ Connector insert: PA/TPU Connector contacts: Brass with gold plated Coupling nut/screw: Brass/Stainless steel Seal/O-ring: FKM Insulation resistance: ≥100MΩ Contact resistance: ≤10mΩ Shielding： Available Mount thread: M12x1.0 IP rating: IP20 in locked condition
Electrical data & Mechanical data
Contacts Available
codingRated current Voltage Contacts
terminationA/C D/C 04 pins D 4A 50V 50V PCB
Please refer to UL Certificate link: http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=CYJV.E321413&ccnshorttitle=Cable+Assemblies+and+Fittings+for+Industrial+Control+and+Signal+Distribution&objid=1084511408&cfgid=1073741824&version=versionless&parent_id=1073985281&sequence=1
Please refer to UL Certificate for Canada link: http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=CYJV7.E321413&ccnshorttitle=Cable+Assemblies+and+Fittings+for+Industrial+Control+and+Signal+Distribution+Certified+for+Canada&objid=1084511388&cfgid=1073741824&version=versionless&parent_id=1073985283&sequence=1
