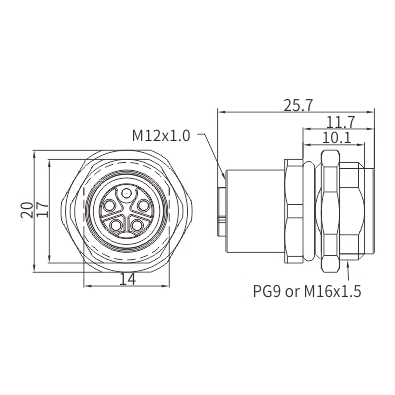

M12 Female Panel Mount, Solder&Crimp Type, Rear fastened, K-coding

M12_2025 P347-2
Part No：MB12F*KRF05ST-X

Product Inquiry
  • Specification
  • Application
  • Certified

  • Connector series: M12

  • Gender: Female

  • Coding: K

  • Locking type: Fix screw

  • Mounting type: Rear fastened

  • Part No.: MB12F*KRF05ST-X


    General information

    Ambient temperature: -25℃ ~ +90℃
    Connector insert: PA
    Connector contacts: Brass with gold plated
    Coupling nut/screw: Brass/Zinc with nickel plated
    Seal/O-ring: FKM
    Insulation resistance: ≥100MΩ
    Contact resistance: ≤10mΩ
    Shielding： Available
    IP rating: IP67 in locked condition


    Electrical data & Mechanical data

    Contacts Available
    coding     		Rated current Voltage Contacts
    termination
    A/C D/C
    05（4+PE） pins K 12A 630V NC Solder&Crimp
