Push-Pull E Series, PSA Straight Plug, Cable collet

PUSH_PULL_2023P102-1
Part No:PSA.XE.XXX.CLACXX

Product Inquiry
  • Specification
  • Application
  • Certified
  • Connector series: E

  • Gender: Hermaphroditics

  • Locking type: Self-locking

  • Oreentation type: Straight

  • Part No.: PSA.XE.XXX.CLACXX

  • General information

    Ambient temperature: -55℃ ~ +250℃
    Connector insert: PEEK
    Connector contacts: Brass with gold plated
    Plug body: Brass with Cr plated
    Seal/O-ring
    Silicone
    Insulation resistance: ≥100MΩ
    Shidelding effciency: at 10MHz>95dB/at 1GHz80dB
    IP rating: IP68 in locked condition

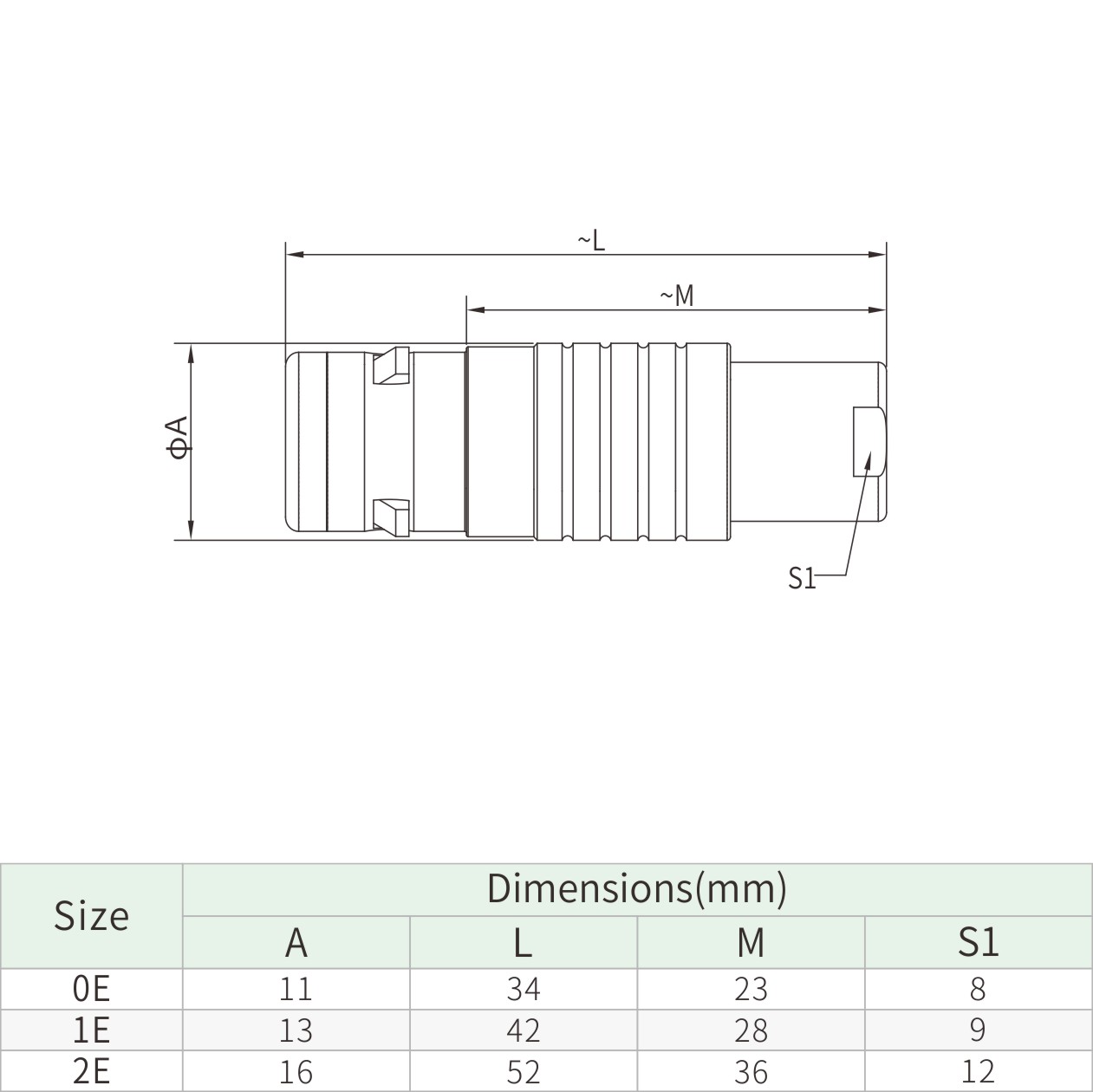

  • SizeDimensions(mm)
    ALMS1
    0E1134238
    1E1342289
    2E16523612


In the process of UL certification right now.
