Push-Pull L Series, PRG Fixed Socket, Key(G), Cable Collet
PUSH_PULL_2023P116-2
Part No：PRG.XL.XXX.CLLCXX
- Specification
- Application
- Certified
Connector series: L
Gender: Hermaphroditics
Locking type: Self-locking
Oreentation type: Straight
Part No.: PRG.XL.XXX.CLLCXX
General information
Ambient temperature: -55℃ ~ +250℃ Endurance ＞5000 cycles Connector insert: PEEK Connector contacts: Brass with gold plated Plug body: Brass with Cr plated Seal/O-ring Silicone Insulation resistance: ≥100MΩ Shidelding effciency: at 10MHz＞95dB/at 1GHz＞80dB Salt spray corrosion test: ＞144h IP rating: IP68 in locked condition

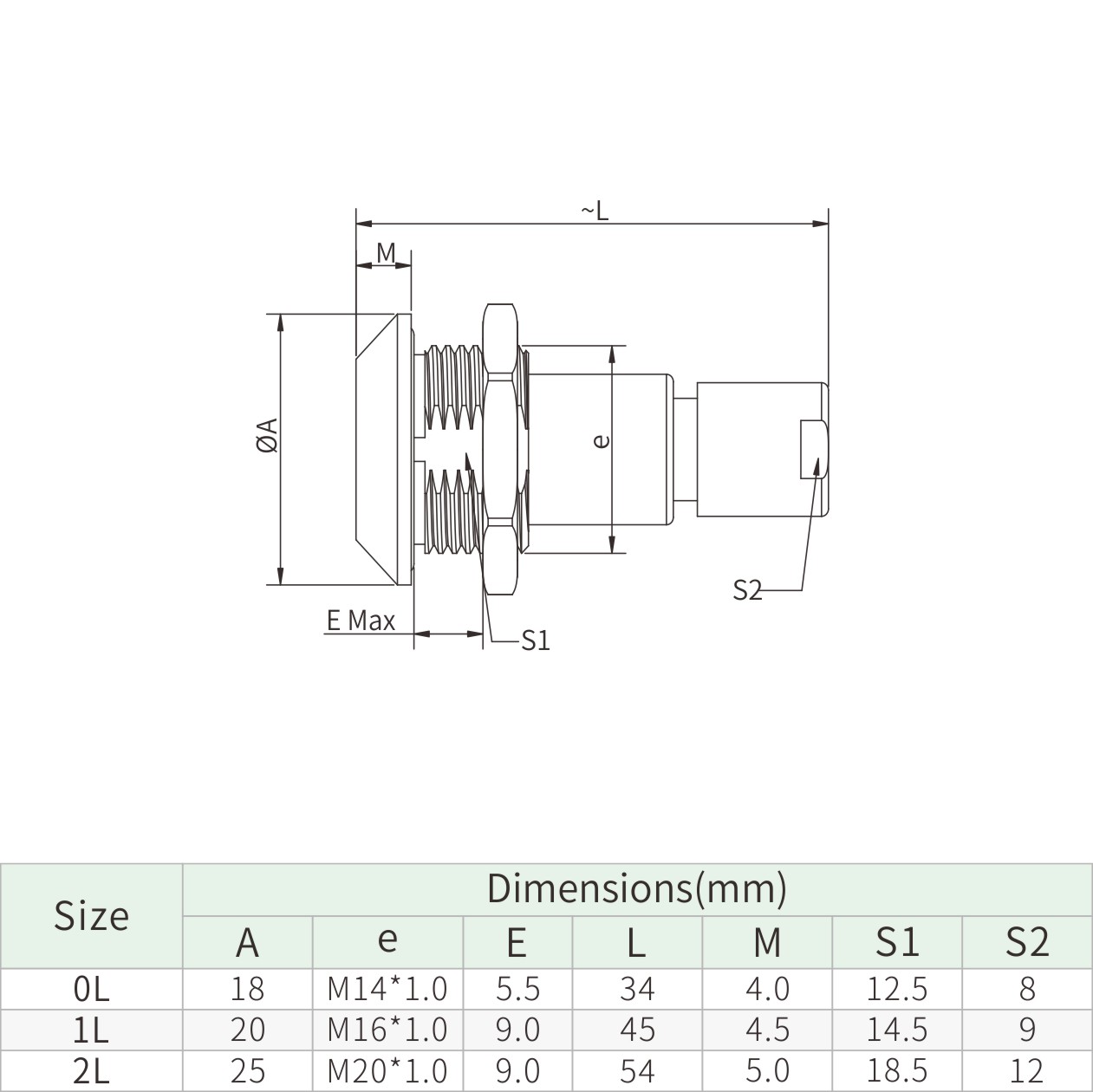

Size Dimensions(mm) A e E L M S1 S2 0L 18 M14*1.0 5.5 34 4 12.5 8 1L 20 M16*1.0 9 45 4.5 14.5 9 2L 25 M20*1.0 9 54 5 18.5 12
In the process of UL certification right now.
