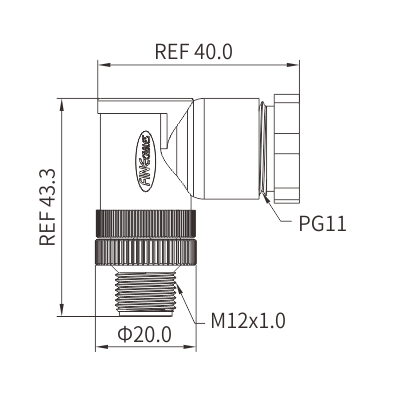

M12 Male Field Wirable Assembly , Angled, Screw joint, K-coding
M12_2025 P261-1
Part No：MB12MWKFF05RA-X
- Specification
- Application
- Certified
Connector series: M12
Gender: Male
Coding: K
Locking type: Fix screw
Mounting type: Straight
Part No.: MB12MWKFF05RA-X
General information
Standard: IEC 61076-2-101 Ambient temperature: -25℃ ~ +90℃ Connector insert: TPU Connector contacts: Brass with gold plated Connector body: PA+GF Coupling nut/screw: Aluminum alloy anodized Seal/O-ring: FKM Insulation resistance: ≥100MΩ Contact resistance: ≤5mΩ Shielding： Unavailable Cable gland OD: PG7: 4~6mm, PG9: 6~8mm IP rating: IP67 in locked condition
Electrical data & Mechanical data
Contacts Available
codingContacts
terminationRated current Voltage Wire gauge/size Cable type
& lengthA/C D/C AWG mm² 4+PE pins K Screw joint 12A 630V 630V 14 1.93 Custom version
available
Please refer to UL Certificate link: http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=CYJV.E321413&ccnshorttitle=Cable+Assemblies+and+Fittings+for+Industrial+Control+and+Signal+Distribution&objid=1084511408&cfgid=1073741824&version=versionless&parent_id=1073985281&sequence=1
Please refer to UL Certificate for Canada link: http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=CYJV7.E321413&ccnshorttitle=Cable+Assemblies+and+Fittings+for+Industrial+Control+and+Signal+Distribution+Certified+for+Canada&objid=1084511388&cfgid=1073741824&version=versionless&parent_id=1073985283&sequence=1
