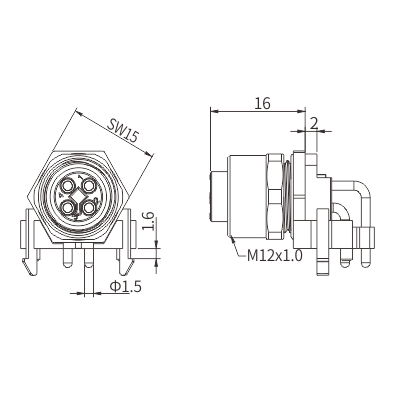

M12 Female Angled Panel Mount, PCB Type, Front fastened, T-coding
M12_2025 P345-1
Part No：MB12FBTFF04RA-0 / MB12FBSTFF04RA-0
- Specification
- Application
- Certified
Connector series: M12
Gender: Female
Coding: T
Locking type: Fix screw
Mounting type: Front fastened
Part No.: MB12FBTFF04RA-0
MB12FBSTFF04RA-0
General information
| Ambient temperature: | -25℃ ~ +80℃ |
| Connector insert: | PA |
| Connector contacts: | Brass with gold plated |
| Coupling nut/screw: | Brass with nickel plated |
| Seal/O-ring: | Epoxy resin/FKM |
| Insulation resistance: | ≥100MΩ |
| Contact resistance: | ≤5mΩ |
| Shielding： | Unavailable |
| Mount thread: | M12x1.0 |
| IP rating: | IP67 in locked condition |
Electrical data & Mechanical data
| Contacts | Contacts termination | Rated current | Voltage | |
|---|---|---|---|---|
| A/C | D/C | |||
| 04 pins | PCB | 12A(40°C) | 63V | 63V |
Please refer to UL Certificate link: http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=PVVA.E496340&ccnshorttitle=Multi-point+Interconnection+Power+Cable+Assemblies+for+Industrial+Machinery&objid=1087896138&cfgid=1073741824&version=versionless&parent_id=1077991988&sequence=1
Please refer to UL Certificate for Canada link: http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=PVVA7.E496340&ccnshorttitle=Multi-point+Interconnection+Power+Cable+Assemblies+for+Industrial+Machinery+Certified+for+Canada&objid=1087896128&cfgid=1073741824&version=versionless&parent_id=1083496411&sequence=1
