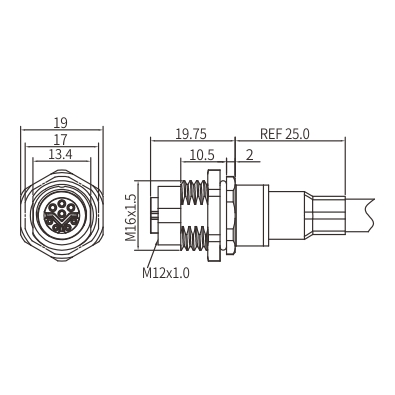

M12 Male Panel Mount, Front fastened, Y4-coding, Shielded
M12_2025 P391-1
Part No：MB12MCSY4FF08ST-XXXXXX-2
- Specification
- Application
- Certified
Connector series: M12
Gender: Male
Coding: Y2
Locking type: Fix screw
Mounting type: Front fastened
Part No.: MB12MCSY2FF08ST-XXXXXX-2
General information
Standard: IEC 61076-2-113 Ambient temperature: -15℃ ~ +85℃ (fixed installation)
-30℃ ~ +85℃ (flexible installation)Customized temperature: -25℃ ~ +85℃ (fixed installation)
-40℃ ~ +85℃ (flexible installation)Connector insert: PA+GF Connector contacts: Brass with gold plated Coupling nut/screw: Brass/Zinc with nickel plated Seal/O-ring: FKM Insulation resistance: ≥100MΩ Contact resistance: ≤10mΩ Shielding： Available IP rating: IP67 in locked condition
Electrical data & Mechanical data
Contacts Available
codingRated current Voltage Contacts
terminationWire type
& length08 pins Y4 6A/0.5A 50V 50V Solder Custom version
available
