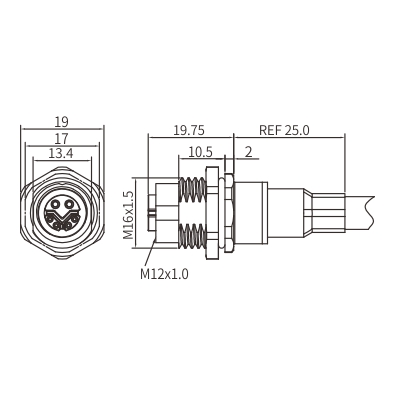

M12 Female Panel Mount, Front fastened, Y3-coding, Shielded
M12_2025 P388-2
Part No：MB12FCSY3FF06ST-XXXXXX-2
- Specification
- Application
- Certified
Connector series: M12
Gender: Female
Coding: Y3
Locking type: Fix screw
Mounting type: Front fastened
Part No.: MB12FCSY3FF06ST-XXXXXX-2
General information
Ambient temperature: -15℃ ~ +85℃ (fixed installation)
-30℃ ~ +85℃ (flexible installation)Customized temperature: -25℃ ~ +85℃ (fixed installation)
-40℃ ~ +85℃ (flexible installation)Connector insert: TPU+GF Connector contacts: Brass with gold plated Coupling nut/screw: Brass/Zinc with nickel plated Seal/O-ring: FKM Insulation resistance: ≥100MΩ Contact resistance: ≤10mΩ Shielding： Available IP rating: IP67 in locked condition
Electrical data & Mechanical data
Contacts Available
codingRated current Voltage Contacts
terminationWire type
& length06 pins Y3 12A 50V 50V Solder Custom version
available
