Current Location: Home > Product > Push-Pull 2P Series, PNB Fixed Socket, K...

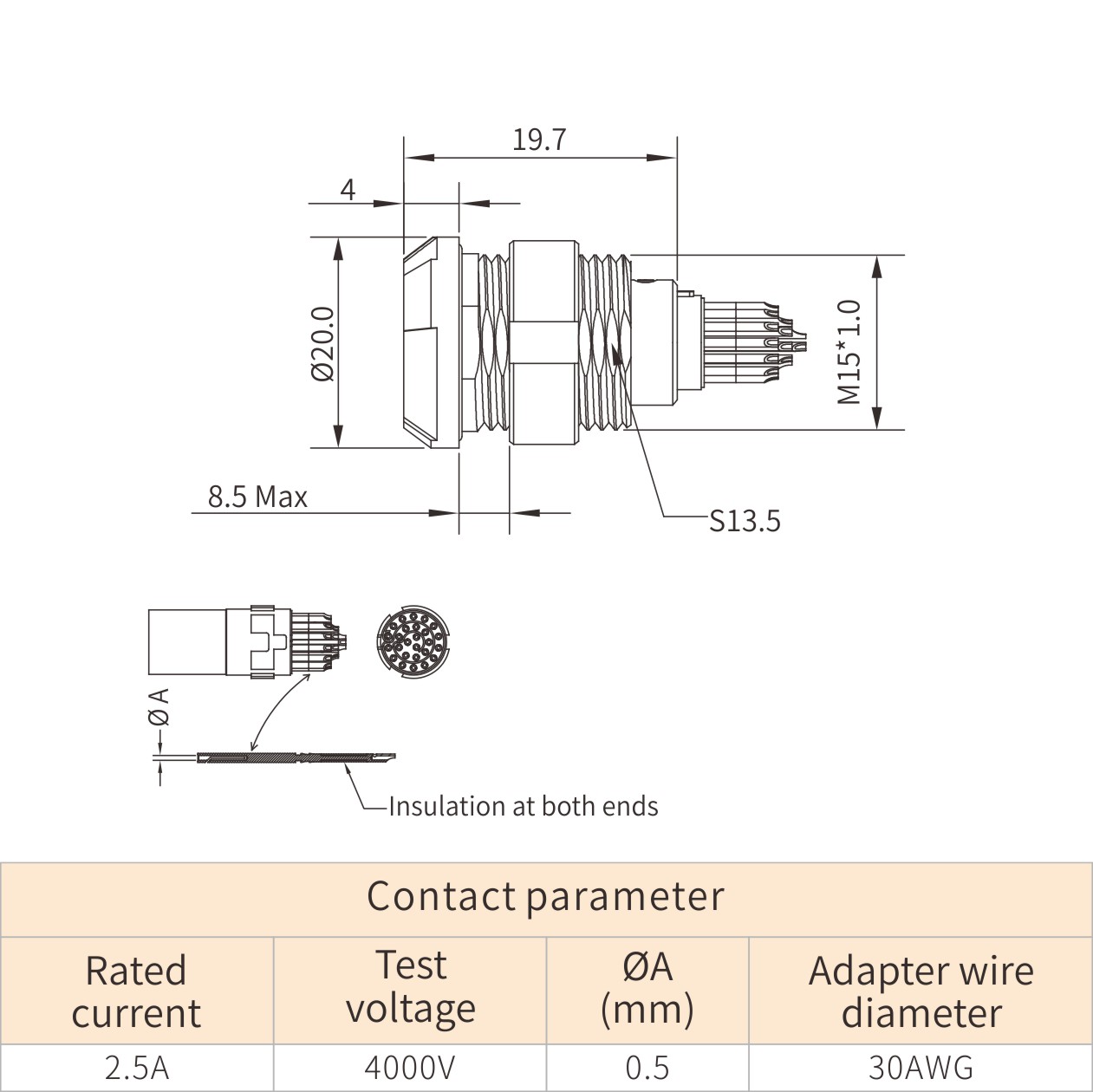

Push-Pull 2P Series, PNB Fixed Socket, Key(B), High Voltage

Push-Pull_2023P146
Part No:PNB.2P.326.GTLG

Product Inquiry
  • Specification
  • Application
  • Certified
  • Connector series: 2P

  • Gender: Socket

  • Locking type: Self-locking

  • Oreentation type: Straight

  • Part No.: PNB.2P.326.GTLG

  • General information

    Ambient temperature:-50℃ ~ +150℃
    Endurance:2000 cycles
    Insulator:PEEK
    Connector contacts:Bronze with gold plated
    Coupling nut/screw:PSU
    Hosuing:PSU
    Insulation resistance:≥100MΩ
    IP rating:IP50 in locked condition


  • Contact     Parameter
    Rated CurrentTest   VoltageφA   (mm)Adapter   Wire Diameter
    2.5A4000V0.530AWG


In the process of UL certification right now.
