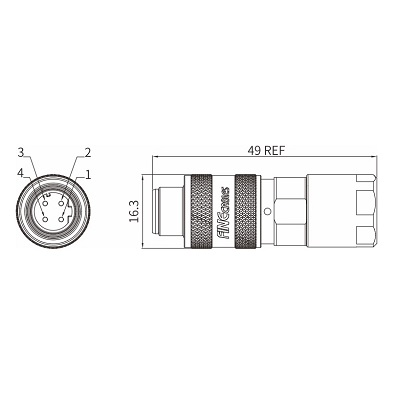

M12 Male, Assembly, Straight, Shielded, Push Pull Type, Steel Ball Application
M12_2025 P268
Part No：MB12MCPSBDFPD04ST-2
- Specification
- Application
- Certified
Connector series: M12
Gender: Male
Coding: D
Locking type: Push Pull
Mounting type: Straight
Part No.: MB12MCPSBDFPD04ST-2
General information
Standard: IEC 61076-2-101 Ambient temperature: -25℃ ~ +90℃ Connector insert: PA+GF Connector contacts: Brass with gold plated Connector shell: Brass with nickel plated Seal/O-ring: Epoxy resin/FKM Insulation resistance: ≥100MΩ Contact resistance: ≤5mΩ Shielding： Available IP rating: IP67 in locked condition
Electrical data & Mechanical data
Contacts Available
codingContacts
terminationRated current Voltage Wire gauge/size Cable type
& lengthA/C D/C AWG mm² 04 pins D Push Pull type 4A 250V 250V 24-20 0.25-055
