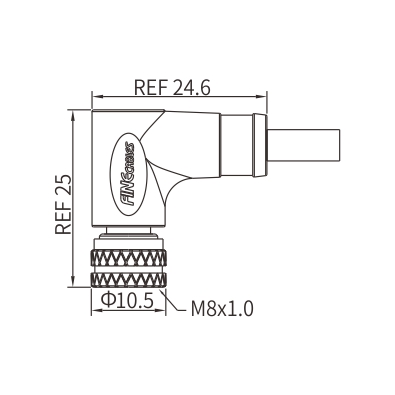

M8 Female Molded, Angled, Shield
M8_2021 P65-2/P89-2/P101-2
Part No：MA08FS*F**RAXXXXXX
- Specification
- Application
- Certified
Connector series: M8
Gender: Female
Coding: A,B
Locking type: Fix screw
Mounting type: Right Angled
Part No.: MA08FS*F**RAXXXXXX
General information
Standard: IEC 61076-2-104 Ambient temperature: -20℃ ~ +80℃ Connector insert: TPU;PA Connector contacts: Brass with gold plated Connector over-molding: TPU Coupling nut/screw: Brass with nickel plated Seal/O-ring: FKM Insulation resistance: ≥100MΩ Contact resistance: ≤5mΩ Shielding： Available(not 360° Shielded) IP rating: IP67 in locked condition
Electrical data & Mechanical data
Contacts Rated current Voltage Wire gauge/size Cable jacket Part No. A/C D/C mm² AWG 03 pins 3A 50V 60V 0.25 24 PVC MA08FSAF03RAXXCB25 PUR MA08FSAF03RAXXRB25 04 pins 3A 50V 60V 0.25 24 PVC MA08FSAF04RAXXCB25 PUR MA08FSAF04RAXXRB25 05 pins 3A 30V 30V 0.25 24 PVC MA08FSBF05RAXXCB25 PUR MA08FSBF05RAXXRB25 06 pins 1.5A 30V 30V 0.14 26 PVC MA08FSAF06RAXXCB14 PUR MA08FSAF06RAXXRB14 08 pins 1.5A 30V 30V 0.14 26 PVC MA08FSAF08RAXXCB14 PUR MA08FSAF08RAXXRB14
Please refer to UL Certificate link:http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=CYJV.E321413&ccnshorttitle=Cable+Assemblies+and+Fittings+for+Industrial+Control+and+Signal+Distribution&objid=1084511408&cfgid=1073741824&version=versionless&parent_id=1073985281&sequence=1#PAGEBOTTOM
