M20 Cables & Connectors

With our intelligence and endeavor, the M20 series has been successfully developed, for the fields of intelligentized lighting, stage lighting control system, architectural and LED series. This series is divided into straight overmolding and panel-mount types. Their 3+5 hybrid-pole design is able to ensure signal and power transmission simultaneously. Fix screw locking system can meet IP68 rating in fully locked condition.


• IP68 rating in locked condition

• 3+5 Poles avaialbe for signal (1.5A) and power (13A) transmission

• PBT connector insert

• PVC/TPU cable jacket and length can be customized

M20 Cables & Connectors
7 products found that match your search criteria
MA20MAP3+5ST
M20 Male Straight Connector, Molded Cable, Contacts: 3+5, Unshielded, IP67/IP68
Available numbers of contacts:
Details
M20 Male Straight Connector, Molded Cable, Contacts: 3+5, Unshielded, IP67/IP68
MA20FAP3+5ST
M20 Female Straight Connector, Molded Cable, Contacts: 3+5, Unshielded, IP67/IP68
Available numbers of contacts:
Details
M20 Female Straight Connector, Molded Cable, Contacts: 3+5, Unshielded, IP67/IP68

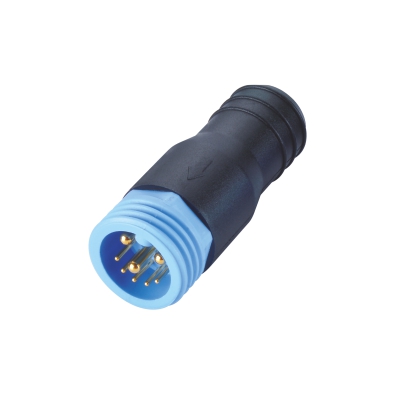

MA20MAP3+5ST-T
M20 Male Straight Connector, Plastic Terminator, Contacts: 3+5, Unshielded, IP67/IP68
Available numbers of contacts:
Details
M20 Male Straight Connector, Plastic Terminator, Contacts: 3+5, Unshielded, IP67/IP68

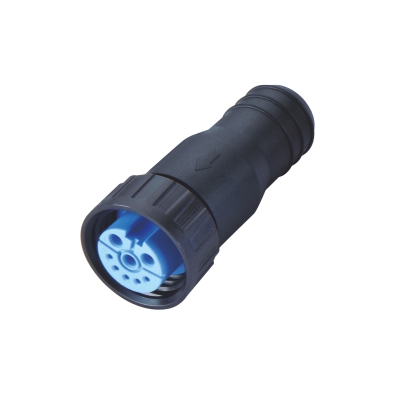

MA20FAP3+5ST-T
M20 Female Straight Connector, Plastic Terminator, Contacts: 3+5, Unshielded, IP67/IP68
Available numbers of contacts:
Details
M20 Female Straight Connector, Plastic Terminator, Contacts: 3+5, Unshielded, IP67/IP68

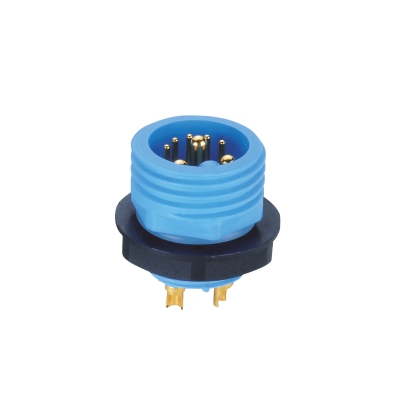

MA20MSARP3+5ST-5
M20 Male Straight Connector, Solder Panel Mount, Rear Fastened, Contacts: 3+5, Unshielded, IP67/IP68
UL Recognized: ECBT2(ECBT8).E473386
Available numbers of contacts:
Details
M20 Male Straight Connector, Solder Panel Mount, Rear Fastened, Contacts: 3+5, Unshielded, IP67/IP68

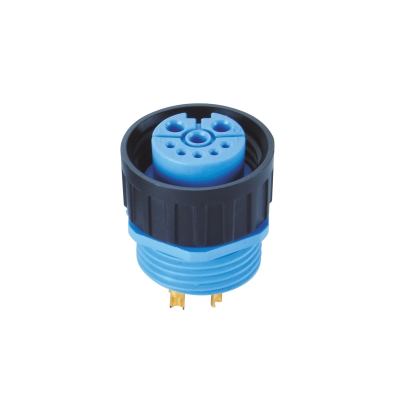

MA20FSARP3+5ST-5
M20 Female Straight Connector, Solder Panel Mount, Rear Fastened, Contacts: 3+5, Unshielded, IP67/IP68
UL Recognized: ECBT2(ECBT8).E473386
Available numbers of contacts:
Details
M20 Female Straight Connector, Solder Panel Mount, Rear Fastened, Contacts: 3+5, Unshielded, IP67/IP68

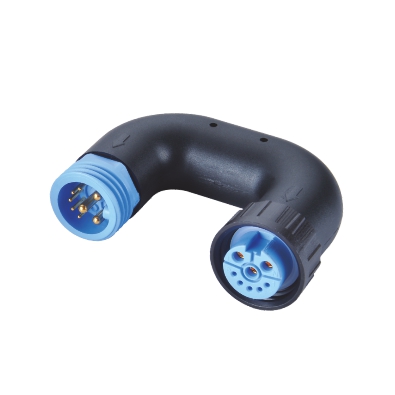

MA20UP-MF3+5
M20 Male-Female Plastic U-Adapter, Contacts: 3+5, Unshielded, IP67/IP68
Available numbers of contacts:
Details
M20 Male-Female Plastic U-Adapter, Contacts: 3+5, Unshielded, IP67/IP68
