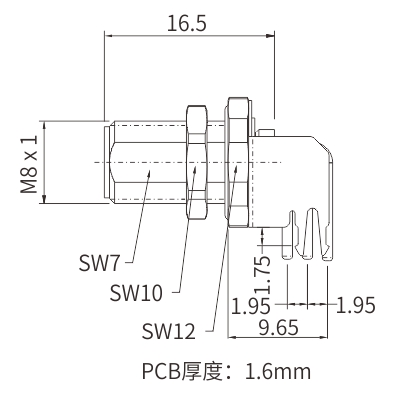

M8 Male B-coding Angled Connector, PCB Panel Mount, Front fastened, Contacts: 5, Shielded, IP67, UL Listed: CYJV(CYJV7).E321413
| Part no. | MB08MBSBFF05RA |
| Standard | IEC 61076-2-104 |
| Ambient temperature | -40℃ ~ +90℃ |
| IP rating | IP67 in locked condition |
| Mating endurance | >500 cycles |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Shielding | Available |
| Rated current | 3A |
| Rated voltage | 30V AC / DC |
| Connector insert | TPU; PA+GF |
| Connector contacts | Brass with gold plated |
| Coupling nut/screw | Brass with nickel plated |
| Seal/O-ring | Epoxy resin / FKM |
The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
