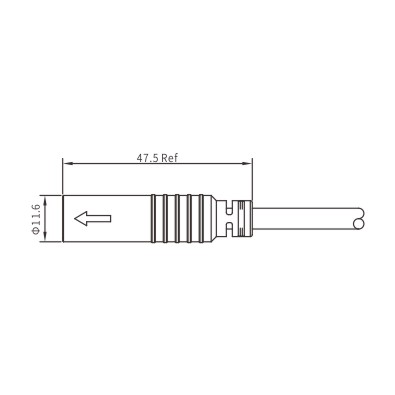

SPE 6P-P8 Male Straight Connector, Snap-in Molded Cable, Contacts: 2, Shielded, IP67
| Part no. | SPEA08MSI02ST |
| Standard | IEC 63171-6-2021 |
| Ambient temperature | -40℃ ~ +80℃ (fixed installation) |
| Ambient temperature | -25℃ ~ +80℃ (flexible installation) |
| IP rating | IP67 |
| Mating endurance | >1000 cycles |
| Insulation resistance | ≥500 MΩ |
| Contact resistance | ≤20 mΩ |
| Shielding | Available |
| Rated current | 4A |
| Rated voltage | 60V D / C |
| Wire gauge | 0.34mm² (AWG22) |
| Connector insert | PA |
| Connector overmold | TPU |
| Connector contacts | Brass with gold plated |
The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
